Mainboard for ACME® D143

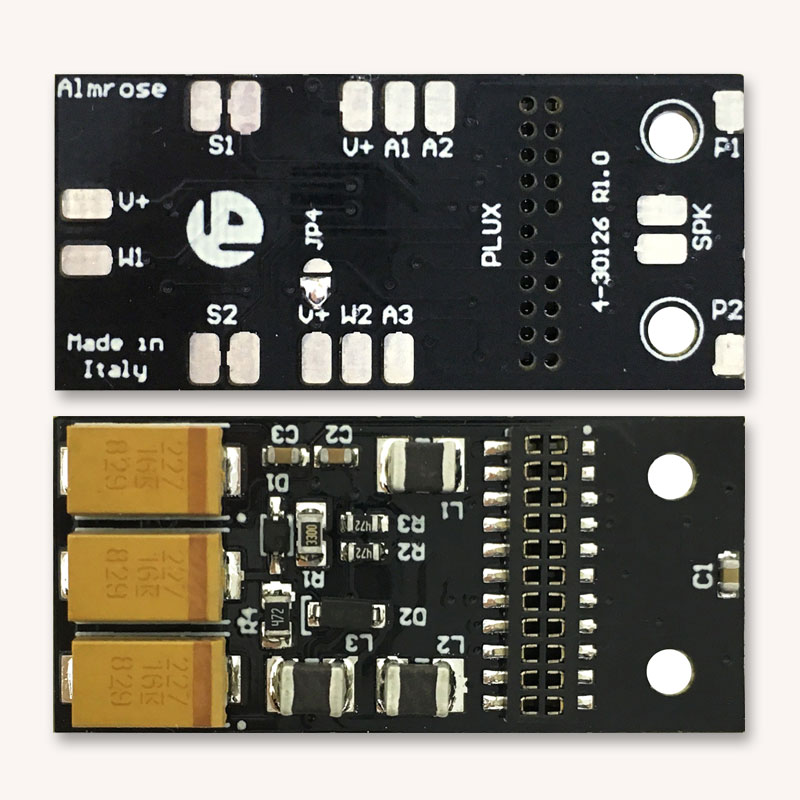

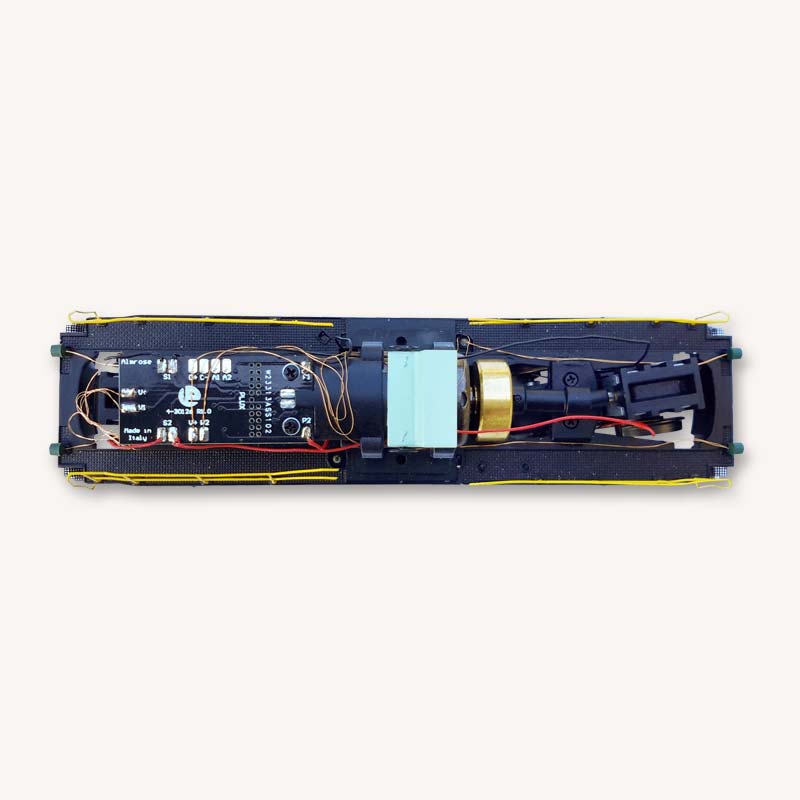

(SKU 04-30126) Kit for updating the electronic board of the ACME® D143 model. Allows the replacement of the original pcb with a newly designed one with these characteristics:

• PLUX22 (NEM658) socket for decoder.
• Pads for connections of running lights and speaker.
• Pads for connections of cab light (optional).
• PowerPack (energy storage device) integrated on the pcb.
• Speaker with specific loudspeaker (optional).

Dimensions: 35 x 16 mm.

Analog mode:

In case of use in analog mode we recommend the analog adapter item 4-30021 (see among the recommended products below).

Compatibility:

This mainboard is compatible with the following models:

60250, 60251, 60252, 60253.

Download the manual in PDF

4-30126 Mainboard Acme D143

1 file(s) 2.24 MB

Download
